Roof Anchor
1 × RSVAKITHSL21- – Roof Anchor

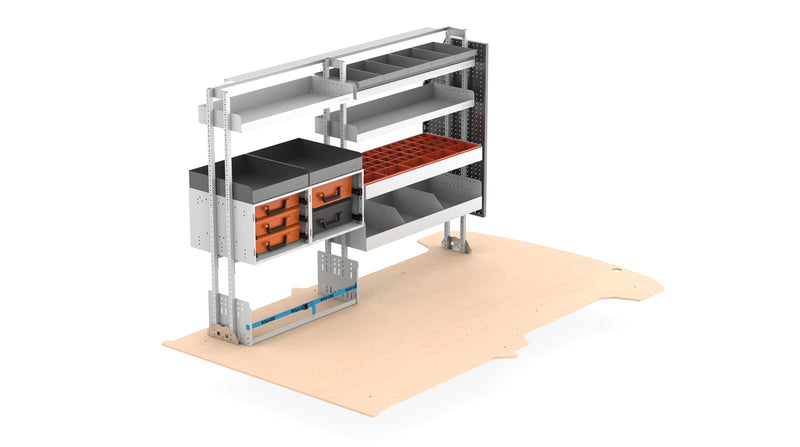

Driver’s Side – Bay 1 (Front of Vehicle)
1 × RSSFR/HD/80/1539 – Heavy Duty Start Frame
1 × RSSHL/85/1 – 305 mm Deep Shelf
1 × RCSK2/C – Cabinet Kit
1 × RCSK3/C – Cabinet Kit
1 × RSBAR/80/2 – Twin Pack Cabinet Support Bar
2 × RCC/TT/40 – Top Trays
1 × RSFLE – Floor Mount Enclosure
1 × RS840A – Floor Mount Enclosure
Note: On 5-door vans, the first cabinet closest to the front seats & shelf can be positioned to face outward through the sliding door.
Driver’s Side – Bay 2 (Over Wheel Arch)
1 × RSEFR/HD/100/1539 – Heavy Duty Extension Frame
2 × RSSHL/105/1 – 305 mm Deep Shelves
1 × RSSHL/106/1 – 400 mm Deep Shelf
1 × RSSHL/109/1 – 420 mm Deep Shelf
5 × RP200 – Medium Grey Plastic Bins with Dividers
5 × RP428 – Medium Orange Plastic Bins with Dividers
1 × RSSHL/D/6S – 2-Pack Shelf Dividers
1 × RSPEP/RIGHT – Right End Panel
1 × RSPEP/HK/2 – 2-Pack End Panel Hooks

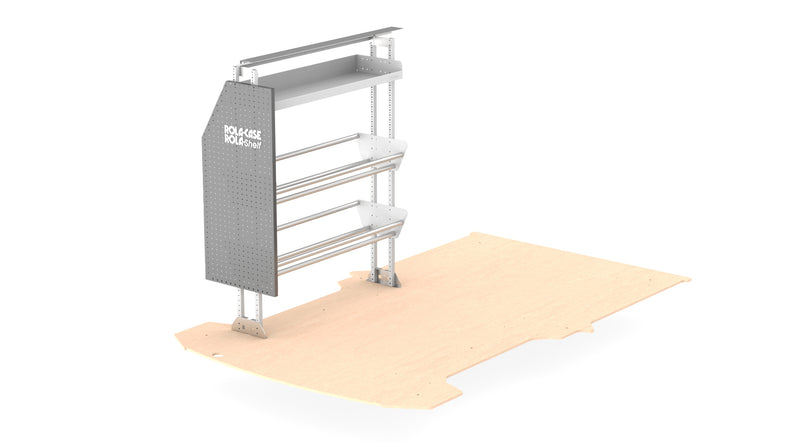

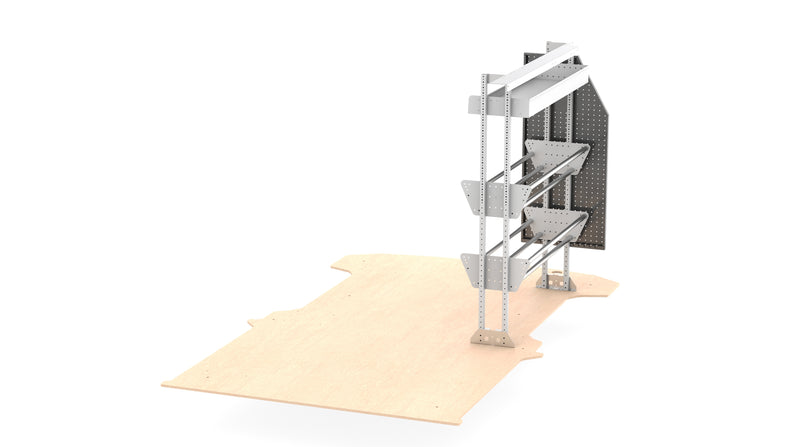

Passenger’s Side (Over Wheel Arch)
1 × RSSFR/HD/100/1539 – Heavy Duty Start Frame
1 × RSSHL/105/1 – 305 mm Deep Shelf
2 × RSCDH/101 – Cable Drum Holders
1 × RSPEP/LEFT – Left End Panel
Included if no flooring is selected:
1 × RSTFJSW(VEHICLECODE) – Jigsaw Floor Template (for vehicles with no flooring or bare metal).
1 × RSTFCBT(VEHICLECODE) – Cardboard Floor Template (for vehicles with existing hardwood flooring; aids installation and ensures accurate fitment).
